Feature
1.Main solid AL6063T5 extraction pillars makes whole piece firmly assemble. 2-Way design brings more convenience while daily / regular maintenance.

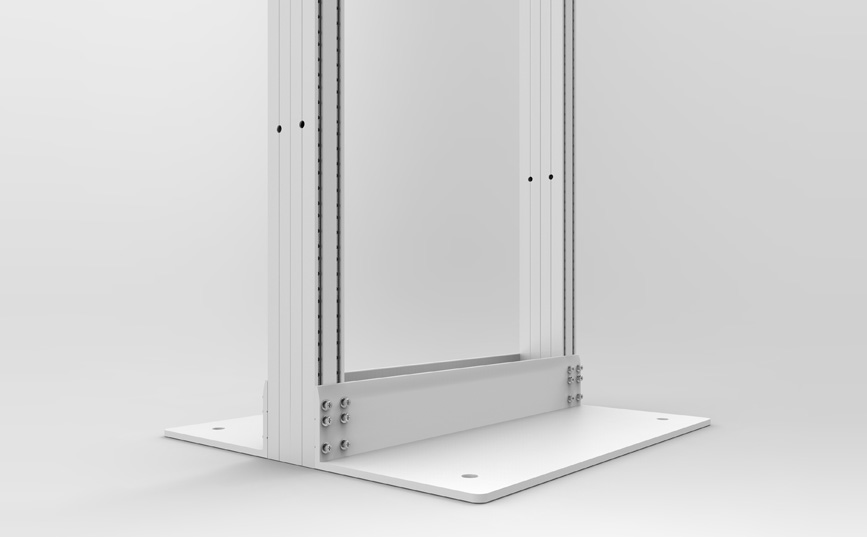

2.Over 10mm thickness bottom extraction makes the structure strong & firm.
3.Protective bar & Cable management accessories are available for this series.
4.RoHS certificated powder coating provide oxygen, scratch, rust & corrode resistance and makes the enclosure a longer life. (Standard Color: White, available in different colors).

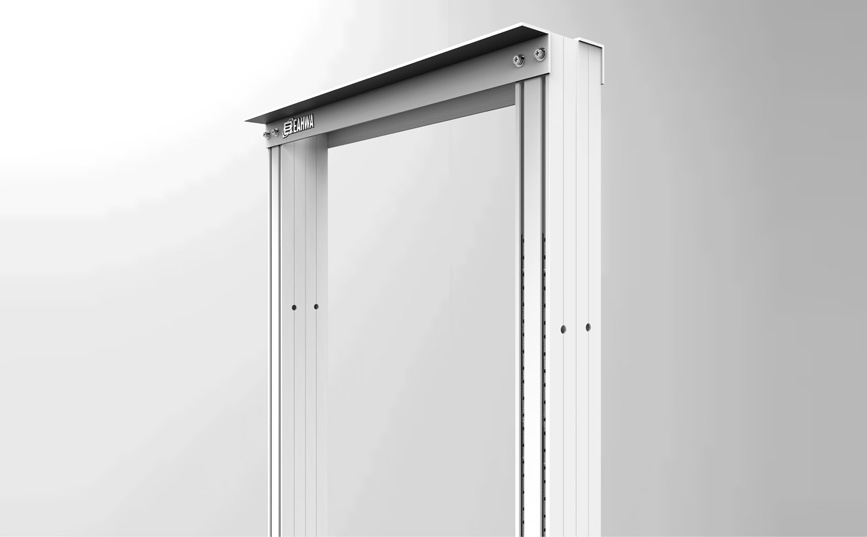

NOP Aluminum Open Rack
Open Rack – NOP is produced according to the regulation of ANSI/EIA RS-310-C/D standard. It has modular design and it stables structurally and easy to install and transport. The materials are SPCC and aluminum. Custom-design is also available and can choose various accessories.
| Model No. | U Unit |
HO Outside Height |
HI Inside Height |
Material | Width |
|---|---|---|---|---|---|
| NOP-15U | 15 | 805 | 678 | AL | 19″/23″ |
| NOP-30U | 30 | 1471 | 1344 | AL | 19″/23″ |
| NOP-35U | 35 | 1694 | 1567 | AL | 19″/23″ |
| NOP-41U | 41 | 1960 | 1833 | AL | 19″/23″ |
| NOP-45U | 45 | 2138 | 2011 | AL | 19″/23″ |
| NOP-58U | 58 | 2716 | 2589 | AL | 19″/23″ |
| NOP-6’6″ | 42 | 1981 | 1864 | SPCC | 19″/23″ |
| NOP-7′ | 45 | 2135 | 2010 | SPCC | 19″/23″ |
| NOP-9′ | 58 | 2745 | 2620 | SPCC | 19″/23″ |
| NOP-11’6″ | 76 | 3505 | 3380 | SPCC | 19″/23″ |
| Material | Inch | WI Inside Width |
WO Outside Width |
|---|---|---|---|
| AL | 19″ | 451 | 536 |
| AL | 23″ | 552 | 638 |
| SPCC | 19″ | 451 | 520 |
| SPCC | 23″ | 552 | 622 |
※ Available to customize
※ 1U = 1.75 inches = 44.45 mm, standard unit = mm
※ 1U = 1.75 inches = 44.45 mm, standard unit = mm
