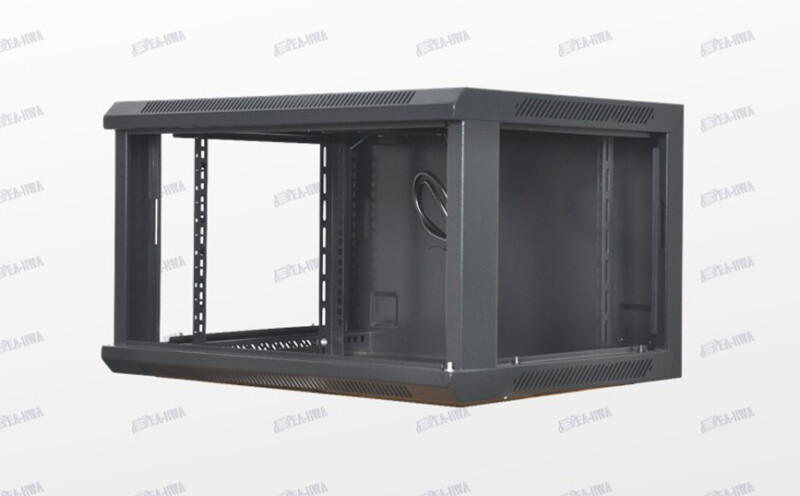

Feature1. Main body adopts welded structure and single section design, that is made of SPCC materials. Loading capability is about 60 kgs.
-
2.Vertical rails that meet ANSI/EIA RS-310-D standard can fit different 19” standard equipment.
-
3.Movable slide side pillars can fit different depth equipment.
-

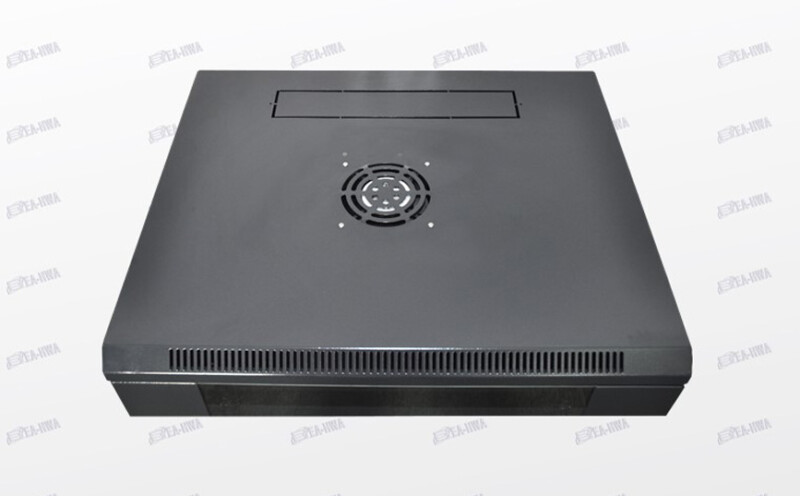

4.Top panel with fan unit to make theventilation of equipment.
-
5.Cable entry on the top cover and bottom panel with brush panel.
-
6.Tempered glass front door with a handle lock, that door frameshave vented and blue trim strips. The front door can be opened about 180 degree, thatcan be easily assembled and disassembled without any additional tools.
-

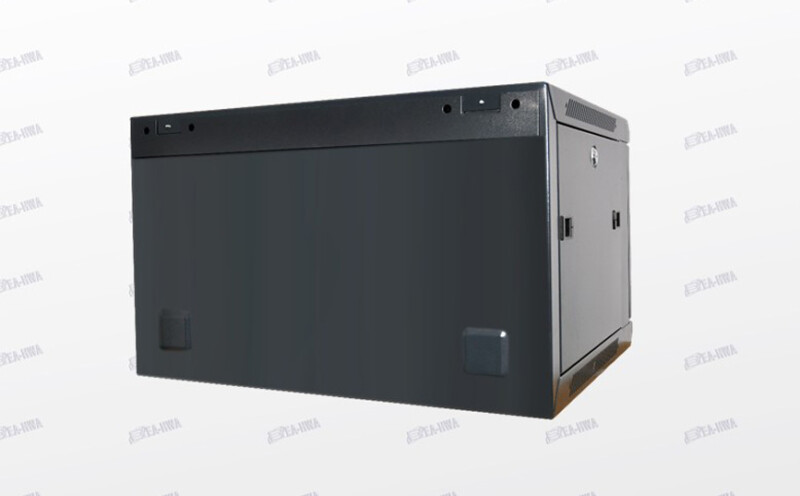

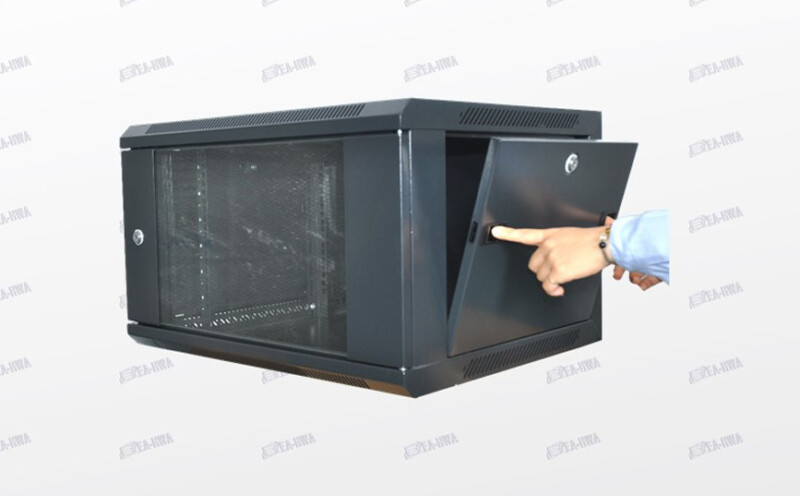

7. The side panel can be easily assembled and removable without any hand tools, and with the round lock.
-

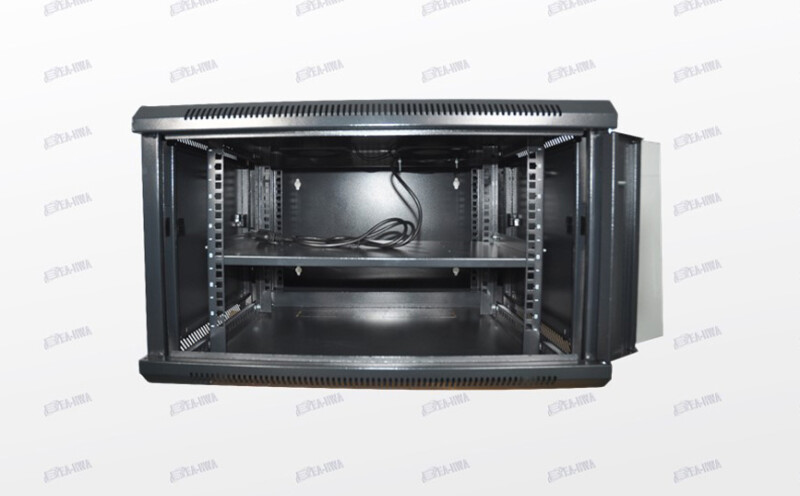

8. Power strip inside (6-way 110V), it’s also passing UL certified.
-
9. The standard color is black color for powder coated.
-
10. Standardization for specification, prompt delivery.
SWA3 Single Section Wall Cabinet
SWA3 series are accordance with ANSI/EIA RS 310- D and certified by UL, CE, and has passed ISO 9001. 19” Wall racks offer of complete network supplies and solutions for all types of businesses.

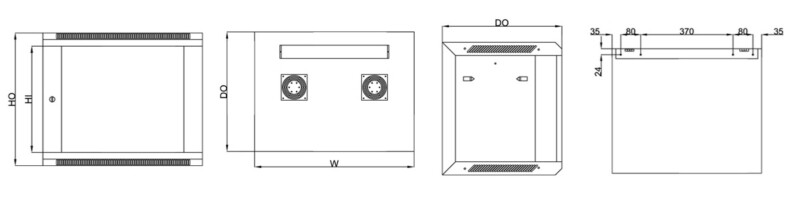

| Model No. | U Unit |
HO Outside Height (mm) |
HI Inside Height (mm) |
DO Outside Depth (mm) |
|---|---|---|---|---|
| SWA3-6-0650 | 6U | 368 | 267 | 500 |
| SWA3-6-0660 | 6U | 368 | 267 | 600 |
| SWA3-6-0850 | 8U | 457 | 356 | 500 |
| SWA3-6-0860 | 8U | 457 | 356 | 600 |
| SWA3-6-0950 | 9U | 501 | 400 | 500 |
| SWA3-6-0960 | 9U | 501 | 400 | 600 |
| SWA3-6-1050 | 10U | 546 | 445 | 500 |
| SWA3-6-1060 | 10U | 546 | 445 | 600 |
| SWA3-6-1250 | 12U | 634 | 533 | 500 |
| SWA3-6-1260 | 12U | 634 | 533 | 600 |
| SWA3-6-1550 | 15U | 768 | 667 | 500 |
| SWA3-6-1560 | 15U | 768 | 667 | 600 |
※ Dimensional tolerances = ±3 mm
※ 1U = 1.75 inches = 44.45 mm, standard unit = mm
※ 1U = 1.75 inches = 44.45 mm, standard unit = mm
