Smart Security | EA-HWA WD Series Network Cabinets with Intelligent Electronic Lock Integration

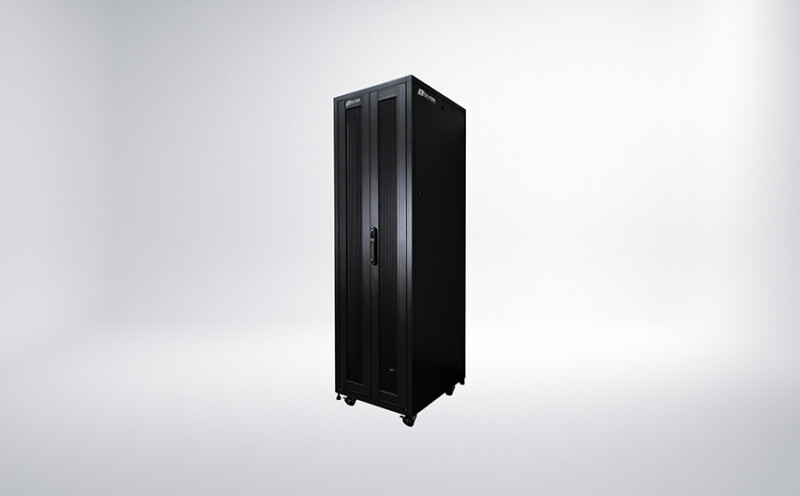

In today’s hyper-connected world, a server cabinet is no longer just a place to store equipment — it is the frontline defense of your organization’s most critical digital assets. EA-HWA’s WD Smart Management Server Cabinet delivers versatile access control and multi-mode unlocking solutions, purpose-built for data centers, enterprise IT rooms, server rooms, and any environment requiring temperature/humidity monitoring and physical security management. Compared to the standard WD Series, this upgraded model offers access logging, remote management, and door status alert capabilities — addressing the demands of modern digital security.
CORE ADVANTAGES
Network Cabinets Engineered for the Long Haul
The WD Smart Management Server Cabinet complies with the ANSI/EIA RS-310-C/D international standard, ensuring full compatibility with 19-inch servers and rack-mount equipment from all major manufacturers. Its proprietary Tri-axial Connection design reinforces the overall cabinet frame, delivering superior vibration resistance in demanding environments. The main structure is constructed from AL6063T5 aluminum alloy — a material chosen for its exceptional strength-to-weight ratio, keeping the cabinet lightweight without compromising structural integrity. The all-aluminum frame is inherently corrosion-resistant, eliminating rust-related maintenance costs and ensuring reliable performance for years to come.
 |
 |
 |
| Main Frame Static Load 2,500+ KGW | Dual Vibration Certification | Tool-Free Access |
| Third-party certified to withstand uniform static load exceeding 2,500 KGW, providing a solid and stable foundation for your most critical equipment assets. | Tested and certified to MIL-STD-167, MIL-STD-810F, and GR63-Zone 4, delivering reliable protection against vibration impact. | Front/rear doors and side panels can be removed and reinstalled quickly without any tools, streamlining cable management and routine maintenance. |
UPGRADE SOLUTION PACKAGE

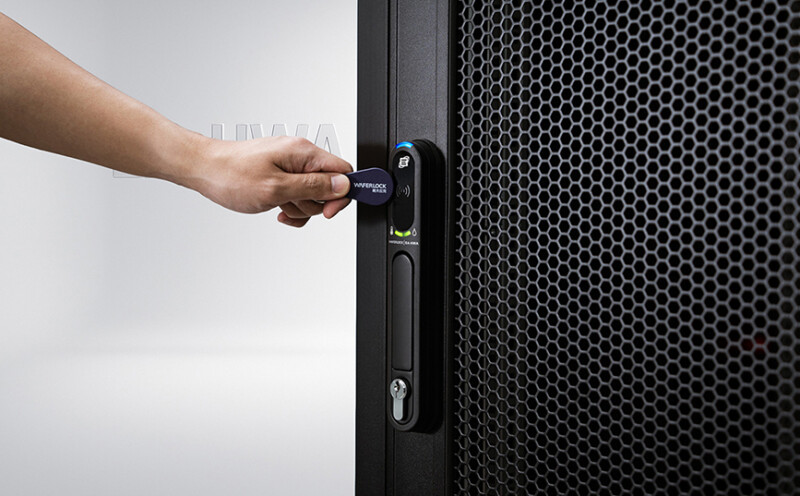

Integrated Smart Electronic Lock
Empowering Intelligent Network Cabinets Protection
Made in Taiwan • Premium Quality • Local Support
Eliminates the common challenges of long lead times and limited after-sales support associated with imported products by providing responsive local technical assistance and readily available spare parts inventory.
 |
 |
 |
| Built-in Door Position Sensor | Built-in Temperature and Humidity Sensor | Multiple Power Backup Protection |
| The lock is equipped with a highly sensitive built-in sensing component to verify whether the door is securely closed and locked. Any abnormal status is instantly reported through real-time alerts. | Each lock functions as a micro-environment monitoring station, featuring dual-color LED indicators and an audible buzzer alarm. Environmental data is transmitted for analysis to help optimize data center PUE. | Powered by a DC 12V main supply with a built-in CR2 lithium battery backup, ensuring continuous operation even during power outages or network disruptions in the data center. |
ISO 27001 Compliance Support • UL94-V0 Fire-Resistant Material • IP67
Unlock Methods
- RFID Access Card（MIFARE DESFire / Classic）
- Cloud-Based Remote Unlocking（LiveAM Platform）
- Mechanical Physical Key (Backup Access)
Communication Interface
- RS485
QUANTIFIABLE OPERATIONAL BENEFITS
Reduce Costs and Improve Management Efficiency
For multiple interconnected server racks or hot/cold aisle containment rack islands, the WD Intelligent Management Server Rack utilizes RJ45 network interface daisy-chain connectivity. A single 12V/2A power supply can support up to 6 racks, effectively simplifying data center cabling infrastructure and installation work.
Application Scenario
 |
 |
 |
 |
| System Integrators (SI) / Data Center Integrators | Government & Financial Institutions | Small and Medium-sized Enterprises (SMEs) | Edge Computing Nodes |
| Compliant with 19-inch standards and easy to integrate. Pre-arranged and pre-routed cabling simplifies on-site installation processes, shortens delivery time, and improves profit margins. | Made in Taiwan with fast delivery and responsive support, making it an ideal solution for lean staffing environments. | Helps meet ISO 27001 compliance requirements for data security and provides optimal protection for high-value equipment that cannot be frequently maintained. | Highly stable rack structure combined with an IP67-rated smart door lock, enabling micro data center deployments in factories or remote locations. |
PRODUCT SPECIFICATIONS
Technical Specifications
| Main body Specification Items | WD Series Parameters | ||
|---|---|---|---|
| External Width | 600mm | Standard Compliance | ANSI/EIA RS-310-C/D |
| External Height | Cabinet height: 1975mm with casters : 2060mm |
Frame Load Capacity | ≥ 2500 KGW （Third-party certified） |
| External Depth | Cabinet depth: 770mm with locks: 822mm |
Vibration Certification | MIL-STD-167、MIL-STD-810F、GR63-Zone 4 |
| Internal Height | 42U (approx. 1867mm) |
International Certifications | UL、CE、ISO |
| Compatible Equipment | For 19”equipment/ width ≤ 483 mm × depth ≤ 550 mm |
Door Options | Acrylic door / ventilated mesh door; left/right reversible, tool-less switching |
ELECTRONIC LOCK SPECIFICATIONS
| Lock Specification Items | Smart Electronic Lock Parameters | ||
|---|---|---|---|
| Protection Rating | IP67 Dustproof & Waterproof |
Power Supply | DC 12V （Backup: CR2 lithium battery） |
| Fire-Retardant | UL 94-V0 | Communication Interface | RS485 |
| Operating Temperature | -10°C ～ 65°C | RFID Support | MIFARE DESFire / Classic（AES 128 bit） |
| Operating Humidity | 0 ～ 90% RH | Country of Origin | Taiwan |
Other Track Records
NCKU (National Cheng Kung University) Server Room
Frequently Asked Questions (FAQ)
Q1. Our company already has employee ID cards. Can we directly assign access permissions using our existing cards?
A1. This product supports both MIFARE Classic and DESFire formats, covering approximately 80–90% of the corporate card formats currently used in the market. In most cases, your existing cards can continue to be used directly.
Q2. Can this lock be integrated with our existing DCIM (Data Center Infrastructure Management) or access control system? Will additional software development be required?
A2. The lock supports RS485 communication, and most mainstream environmental monitoring and control software platforms can read the data directly. Integration requirements are minimal and highly compatible with existing systems.
Q3. Our data center cabinets are older models. Can this lock directly replace the original handle lock? Will drilling be required?
A3. An on-site measurement and evaluation by our engineers will be required. Custom manual cutouts can be performed if necessary, or the cabinet door assembly can be replaced with a new door set.
For further information, please feel free to contact us and leave your requirements. Our professional team will arrange a dedicated representative to contact you directly.
Ready to Upgrade Your Data Center Security Protection?
