Feature1.Main body adopts one-piece structure design and it is made of SPCC materials.
-
2.Horizontal rails that meet ANSI/EIA RS-310-D standard can fit the 19” 3U equipment.
-

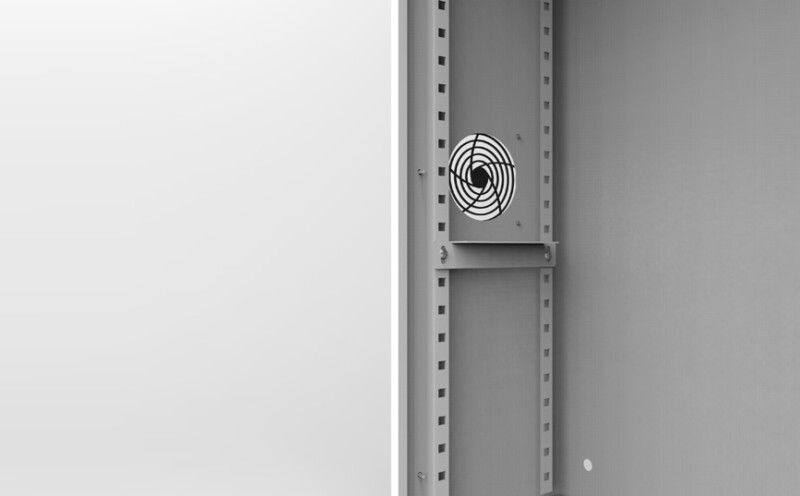

3.Top frame with fan unit to make the ventilation of equipment.
-

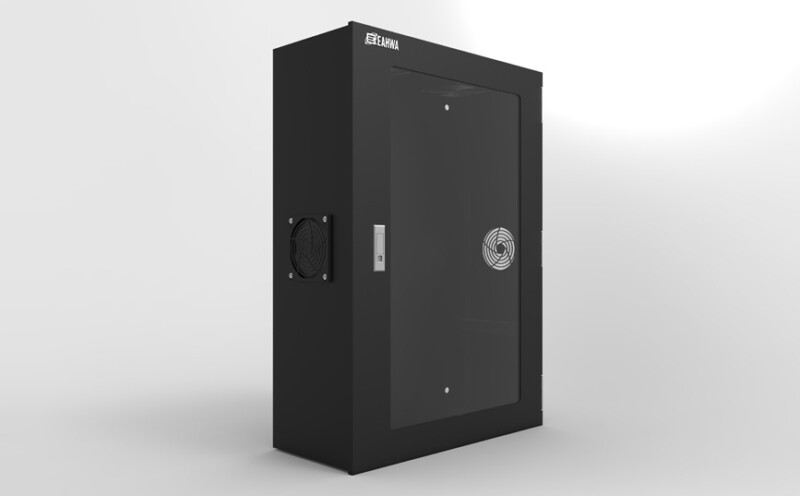

4.Front acrylic door design with hidden handle lock. (Optional: vent door)
-
5.The rack has made cable entry holes and has rubber cover to provide dust or insects destroy the equipment.
-
6.Install filter on left and right side to leach the air flow.
-
7.Powder coating to fight against rust, oxidization. There is accordance with ROHS standard. The standard color: white or black.
-
8.Special size can be custom-made according request.

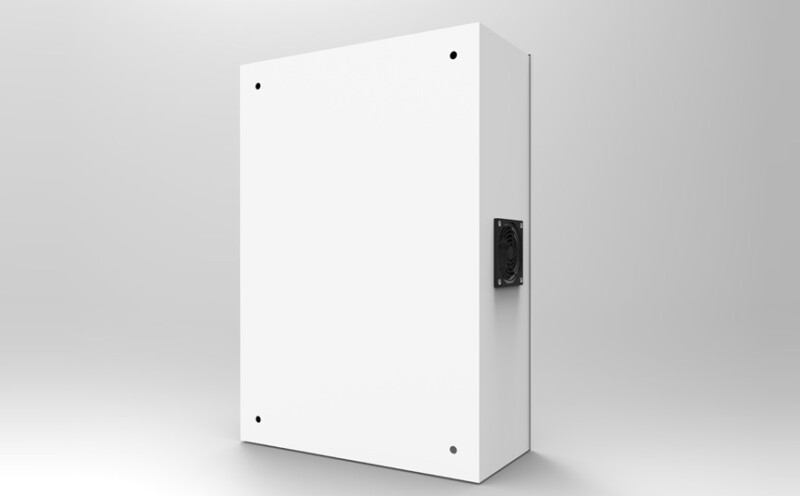

NWA2 Wall-Mount Upright Rack
NWA2 Series meet ANSI/EIA RS 310-D standards can be used with the 19″ 3U equipment. Besides, they’re all certified by UL, CE, ISO 14001 and ISO 9001.
| Model No. | U Unit |
WO Outside Width |
HO Outside Height |
DO Outside Depth |
|---|---|---|---|---|
| NWA2-0380 | 3U | 559.5 | 800 | 250 |
※ Available to customize
※ 1U = 1.75 inches = 44.45 mm, standard unit = mm
※ 1U = 1.75 inches = 44.45 mm, standard unit = mm
