Feature1.Main structure can beassembleanddesign by single section,which made of SPCC materials.Loading capability is about 60 kgs.
-
2.Vertical rails meet ANSI/EIA RS-310-D standard, which can mount different 19” standard equipment.
-
3.Sliding rails makes mounting posts adjustable which can fit different depth of equipment.
-
4.Top panel with 2 of120mm*120mm fansfor equipment hot exhaust.
-
5.Cable entry on the top cover and bottom panel with knock-out plate.
-
6.The front door is tempered glass with a round lock.L-shaped spring pin make front doorcan be installed faster to the frame and easily to change the opening direction. Door plates can be fast assembled.
-
7.Removable side panels simplified your installation of accessories and monitoring of IT equipment.
-
8.Cabinets can be served with flat-packed, which can reduce logistic costs and easier to transport.When flat-packed, only 1/3 of assembled volume left. Structure ofWall-Mount Cabinetis perfect, extremely easy for assembling. It only takes 5 minutes for a skillful person to build a whole cabinet.
-
9.Standard color: Black, powder coating.
-
10.Hardwares: ≦12U: 12 sets cage nuts
>12U: 24 sets cage nuts
SWA5 Combined Enclosures
SWA5 19″ Wall-Mount Rack series are accordance with ANSI/EIA RS 310- D and certified by UL, CE, and has passed ISO 9001. 19”Wall-Mount Racks offer of complete network supplies and solutions for all types of businesses.
Designed to storage rack-mount equipment for cabling, telecommunications, IT, industrial and home installations.

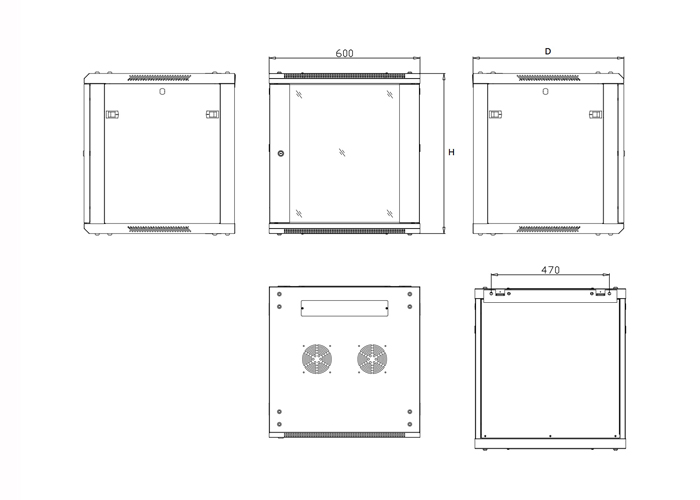

SWA5 Wall Rack Size of Standard Model – W600MM
| Model No. | U Unit |
HO Outside Height (mm) |
HI Inside Height (mm) |
DO Outside Depth (mm) |
|---|---|---|---|---|
| SWA5-0645 | 6U | 370 | 267 | 450 |
| SWA5-0650 | 500 | |||
| SWA5-0660 | 600 | |||
| SWA5-0945 | 9U | 500 | 400 | 450 |
| SWA5-0950 | 500 | |||
| SWA5-0960 | 600 | |||
| SWA5-1245 | 12U | 635 | 533 | 450 |
| SWA5-1250 | 500 | |||
| SWA5-1260 | 600 | |||
| SWA5-1550 | 15U | 770 | 667 | 500 |
| SWA5-1560 | 600 |
※ Dimensional tolerances = ±3 mm
※ 1U = 1.75 inches = 44.45 mm, standard unit = mm
※ 1U = 1.75 inches = 44.45 mm, standard unit = mm
